Difference Between Water Tube And Fire Tube Boiler Pdf. 1) these types of boilers have light weight construction. The operating pressure is about 25 bar.

Difference Between Fire Tube Boiler And Water Tube Boiler [With Pdf] from learnmechanical.com

Boiler contains a safety valve that, when the pressure becomes too high due to blockage or overheating, releases the excess steam. Hot flue gases flow inside the tube and the water outside the tube. We work for your education and happiness.

Source: www.green-mechanic.com

Difference between fire tube boiler and water tube boiler structure both are shell and tube type of boiler, fire tube have hot gases inside the tube while water tube have water inside the tube and hot gases surrounding them So, keep in touch and don't forget to share our post.

Source: www.youtube.com

Water flows inside the tube and the flue gases outside the tube. In this boiler the hot flue gases is present inside the tubes and water surrounds them:

Source: mectips.com

The following advantages of fire boiler are: This is because of condensed tangential pressure on tubes which is known as hoop stress.

Source: www.mech4study.com

3) efficiency of combustion in this type of boiler is always good. Water flows inside the tube and the flue gases outside the tube.

Source: mechanicalboost.com

When fire tube boilers run low on water, the metal in the boilers shrinks. Difference between water tube boiler and fire tube boiler.

Source: themechanicalengineering.com

The procedure for cleaning is very simple. 4) thermal stresses are less as the water circulation is very good inside the tubes.

Source: marinerspoint.in

In a water tube design, the opposite applies — the water heats by traveling through a tube surrounded by flue gas. The single rear tube sheet is subjected to the high thermal stresses of both the very high temperature (17000f to 19000f) first turn and a much cooler third turn (4500f to 6000f).

Source: mechaengineerings.wordpress.com

Fire tube boiler water tube boiler; Waterback boilers have two rear tube sheets.

Source: www.pumpsandsystems.com

Mariners point is a leading web platform which provides the complete solution for the mariner. In this video i have explained difference between water tube and fire tube boiler step by step with following time codes:

Source: learnmechanical.com

This boiler is also called fire tube boiler, fire tube shell boiler. Boiler contains a safety valve that, when the pressure becomes too high due to blockage or overheating, releases the excess steam.

Source: marinerspoint.in

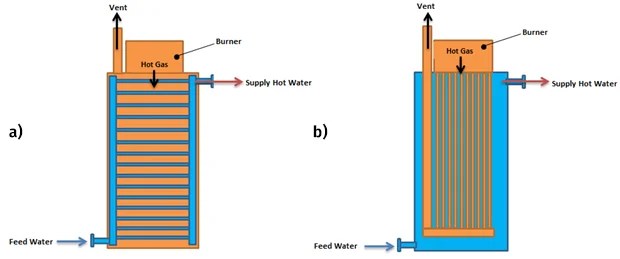

Difference between fire tube boiler and water tube boiler [with pdf] the main differences between the fire tube and the water tube boiler are the hot gases flow inside the tube and water surround them in the fire tube boiler whereas, in the water tube, water flows inside the tube and hot gases surround them. The procedure for cleaning is very simple.

The Main Difference Between Fire Tube And Water Tube Boiler Is That In Fire Tube Boiler, Hot Flue Gases Pass Through Tubes And Water Surrounds Them, And In Water, Tube Boiler Water Passes Through Tubes And Hot Flue Gasses Is Surround Them.

3) efficiency of combustion in this type of boiler is always good. Water flows inside the tube and the flue gases outside the tube. This is because of condensed tangential pressure on tubes which is known as hoop stress.

The Procedure For Cleaning Is Very Simple.

Hot flue gases flow inside the tube and the water outside the tube. In a fire tube design, hot flue gas travels through tubes that are surrounded by water. Due to the small tube diameter, a water tube boiler can operate at much higher pressures than a fire tube boiler, so they are often used in power station applications that require a high steam output, high pressure steam or superheated steam.

Mariners Point Is A Leading Web Platform Which Provides The Complete Solution For The Mariner.

This boiler is also called fire tube boiler, fire tube shell boiler. In this video i have explained difference between water tube and fire tube boiler step by step with following time codes: It is cheaper than the water tube boiler.

Fire Tube Boilers, Typically Have A Lower Initial Cost, Are More Fuel Efficient And Easier To Operate, But They Are Limited Generally To Capacities Of 25 Tons/Hr And Pressures Of 17.5 Kg/Cm2.

So, keep in touch and don't forget to share our post. Fuel is burned inside the furnace, creating hot gas which heats water in the steam. Superbly explained difference between fire tube and water tube boiler with important points.#difference#comparison#fire tube#water tube#boiler#steam boiler#g.

Water Tube Or “Water In Tube” Boilers In Which The Conditions Are Reversed With The Water Passing

Difference between fire tube boiler and water tube boiler structure both are shell and tube type of boiler, fire tube have hot gases inside the tube while water tube have water inside the tube and hot gases surrounding them To operate a fired boiler, no need for skilled operators. The water is present inside the tubes and the hot flue gases surrounds them:
